Duct fan Ø250 mm, up to 1470 m³/h
Duct fan Ø250 mm, up to 1470 m³/h
Duct fan Ø250 mm, up to 1470 m³/h

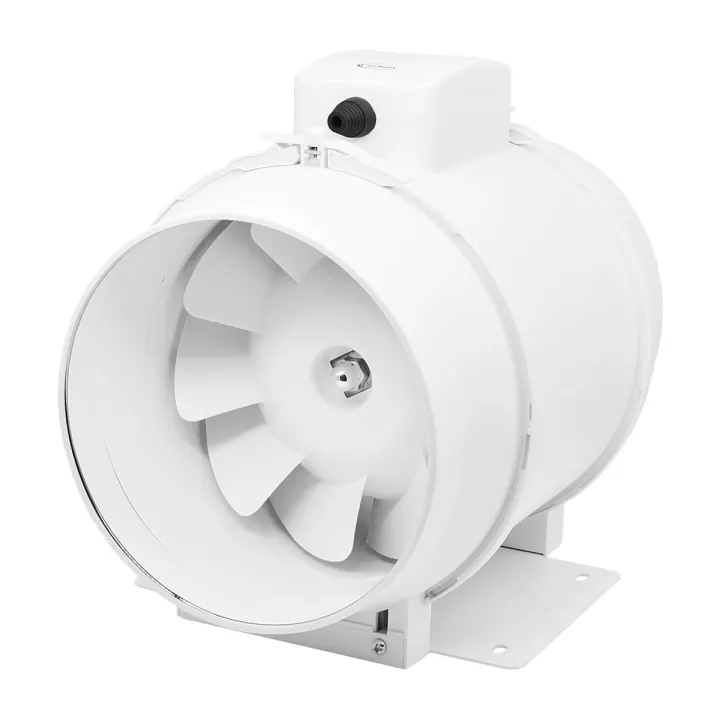

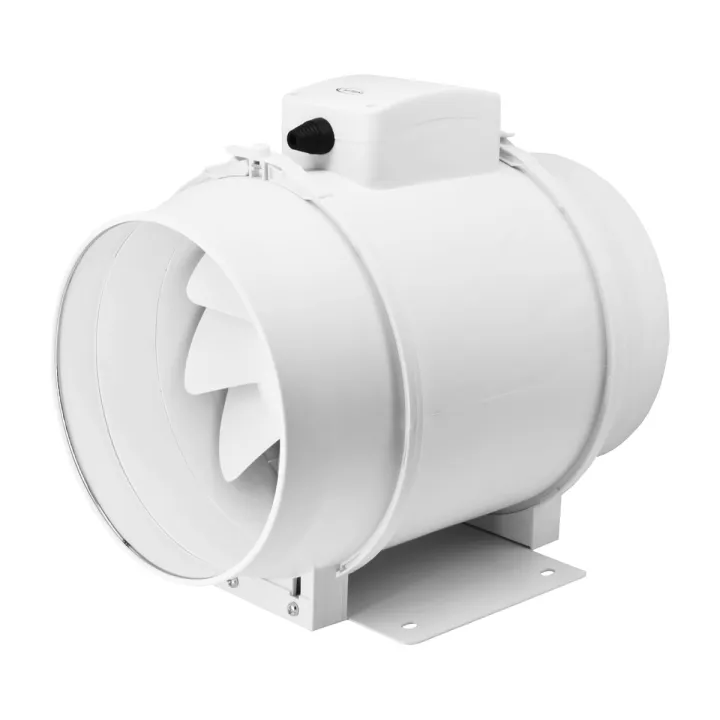

Inline duct fan Ø250 mm with two speeds, up to 1470 m³/h

airRoxy
€229.90
Tax included €229.90 incl. VAT€188.44 excl. VAT
  • Duct fan for round duct Ø250 mm.
  • 2 speeds I / II with airflow 1200 / 1470 m³/h.
  • External connection box for connection according to the wiring diagram.
  • For supply and air extraction through ventilation ducts.
At supplierDelivery in 3–⁠5 days

Duct fan for round ventilation ducts Ø250

The duct fan is intended for supply and exhaust air through round ventilation ducts Ø250 mm. It is suitable for spaces where a higher airflow and the option to choose between two operating speeds I / II are required.

Main advantages

  • Installation in a round duct: the fan is designed for installation in a duct Ø250 mm.
  • Two operating speeds: speed I / II provides an airflow of 1200 / 1470 m³/h.
  • Suitable for longer ducts: static pressure 165 / 330 Pa helps with ventilation through ducts.
  • External connection box: connection is made according to the wiring diagram on the terminal strip in the box.
  • Wide use: it is suitable for bathrooms, apartments, houses, shops, catering premises, garages and warehouses.
  • Reliable choice: the product has a 2-year warranty.

Use and installation

The fan is used for supply or exhaust air through ventilation ducts in residential, commercial and auxiliary spaces. It is intended for installation in a round duct Ø250 mm, so it is important that the duct is of the correct size and properly prepared for installation.

You select speed I / II with an external switch or external speed controller, which is not included. Electrical connection is made in the external connection box according to the wiring diagram on the terminal strip. During installation, observe the IPX2 protection rating and the intended use of the product.

Frequently asked questions

Is the switch or speed controller included?

No. You select speed I / II with an external switch or external speed controller, which is not included.

What airflow does the fan provide?

The airflow is 1200 / 1470 m³/h at speed I / II.

Where is the fan installed?

It is installed in a round ventilation duct Ø250 mm. It is used for supply and exhaust air through ducts in bathrooms, apartments, houses, shops, catering premises, garages and warehouses.

Conclusion

The Ø250 mm duct fan is a suitable choice for ventilation through round ducts where you need a higher airflow and a choice between speeds I / II.

  • Diameter (mm)
    250
  • Airflow (m³/h)
    1200 / 1470
  • Static pressure (Pa)
    165 / 330
  • Noise level (dB(A))
    63 / 70
  • Electrical power (W)
    134 / 200
  • Voltage / frequency / phases
    220-240 V / 50 Hz / 1F
  • IP rating
    IPX2
  • Installation type
    in-line
  • Control
    external speed controller (not included)
  • Number of speeds
    2
  • Warranty (months)
    24
  • Weight (kg)
    7,8
  • Compatible with
    aRo 400
  • Motor speed (rpm)
    2150 / 2550
  • Brand
  • Reference
    aRil 250 PRO
  • In stock
    99999 Items
  • EAN13
    5903351810074
