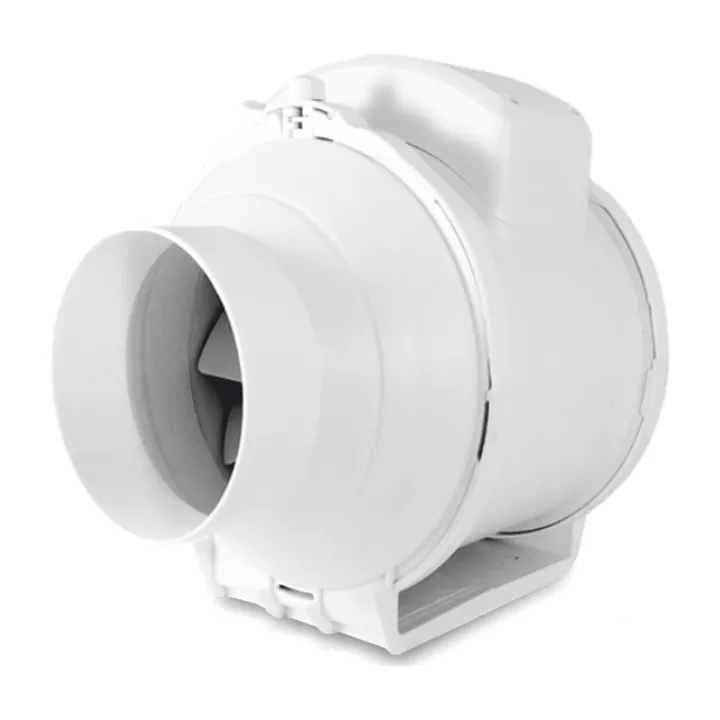

Duct fan Ø200, up to 870 m³/h
Duct fan Ø200, up to 870 m³/h

Inline duct fan Ø200 mm with three speeds, up to 870 m³/h

airRoxy
€190.90
Tax included €190.90 incl. VAT€156.48 excl. VAT
  • Duct fan for round duct Ø200 mm.
  • 3 speeds I / II / III with airflow 660 / 750 / 870 m³/h.
  • For air supply and air extraction through ducts in different rooms.
  • External connection box; switch or speed controller not included.
At supplierDelivery in 3–⁠5 days

Tube fan for ventilation in round ducts

The tube fan is intended for installation in a round ventilation duct Ø200 mm. It is used for air supply or air exhaust through ducts, and allows selection between three operating speeds I / II / III.

Main advantages

  • Installation in Ø200 mm duct: suitable for round duct ventilation systems.
  • Three operating speeds: at levels I / II / III it achieves an airflow of 660 / 750 / 870 m³/h.
  • For air supply and air exhaust: suitable for bathrooms, apartments, houses, shops, hospitality venues, garages and warehouses.
  • External connection box: connection is made to the terminal strip in the box according to the wiring diagram.
  • Control with an external element: you select the speed with an external switch or external speed controller, which is not included.
  • 2-year warranty: the product has a 2-year warranty.

Use and installation

The fan is intended for ventilation through ducts where air supply or air exhaust is required. It is suitable for use in bathrooms, apartments, houses, shops, hospitality venues, garages and warehouses.

It is installed in a round Ø200 mm duct. The electrical connection to 220-240 V, 50 Hz is made according to the wiring diagram on the terminal strip in the external connection box. An external switch or external speed controller is not included. Due to protection class IPX2, the product is not intended for outdoor installation.

Frequently asked questions

How do I choose the operating speed?

You select speed I / II / III with an external switch or external speed controller. The switch or speed controller is not included.

What are the values at individual speeds?

At speeds I / II / III, the airflow is 660 / 750 / 870 m³/h, the static pressure is 240 / 280 / 290 Pa and the sound pressure is 61 / 63 / 68 dB(A).

Does the fan have a backdraft damper?

No, the fan does not have a backdraft damper. If you need one in the ventilation system, it must be provided separately.

Conclusion

The Ø200 mm tube fan is suitable for ventilation through round ducts, where you need a choice between three speeds and an airflow of up to 870 m³/h.

  • Diameter (mm)
    200
  • Airflow (m³/h)
    660 / 750 / 870
  • Static pressure (Pa)
    240 / 280 / 290
  • Noise level (dB(A))
    61 / 63 / 68
  • Electrical power (W)
    95 / 98 / 105
  • Voltage / frequency / phases
    220-240 V / 50 Hz / 1F
  • IP rating
    IPX2
  • Installation type
    in-line
  • Number of speeds
    3
  • Warranty (months)
    24
  • Weight (kg)
    3,8
  • Compatible with
    aRo 100
  • Brand
  • Reference
    aRil 200 PRO
  • In stock
    99999 Items
  • EAN13
    5902767160056
