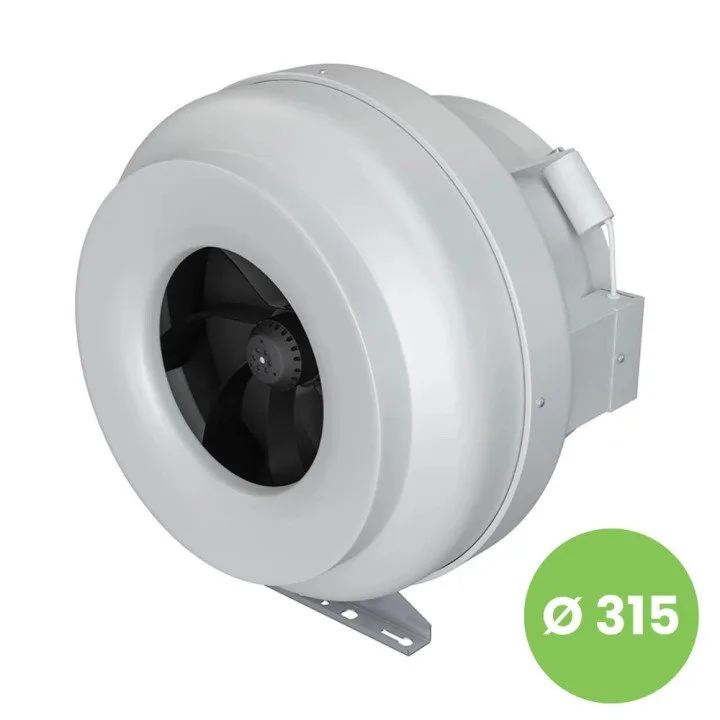

Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm
Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm

Centrifugal duct inlet-and-exhaust plastic fan BB Ø 315 mm

AKVAVENT
€271.57
Tax included €271.57 incl. VAT€222.60 excl. VAT
  • Up to 40000 hours of continuous operation
  • Overheat protection
  • 2 years warranty

Last items in stock
  • Centrifugal exhaust fans in plastic case.
  • Designed for supply and exhaust ventilation systems.
  • The case is made of high-quality durable plastic.
  • Fans are equipped with waterproof terminal box.

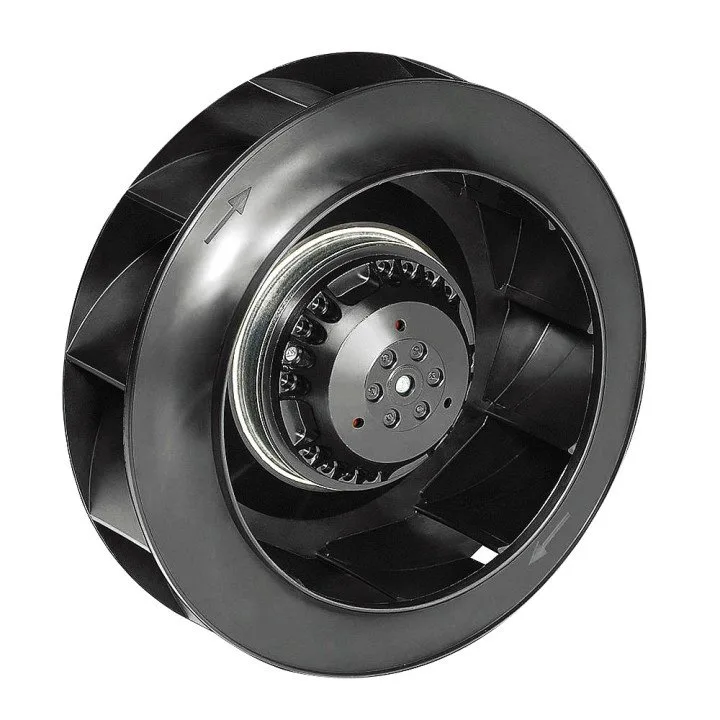

  • The impeller with back curved blades is powered by a single phase asynchronous AC motor with external rotor including the following features: -A dynamically balanced impeller with back curved blades balanced in two planes.
  • Overheating protection with automatic restart.
  • Maintenance-free ball bearings used with motors and designed for at least 40 000 hours operation
  • Fans are intended for duct mounting in air vent of suitable diameter and at any angle. Mounting to the wall or the ceiling is carried out with brackets.
  • Speed regulation is available. Smooth or step speed control with a thyristor or autotransformer speed controller. Several fans may be connected to one-speed controller provided that the total power and operating current do not exceed the rated speed controller parameters.

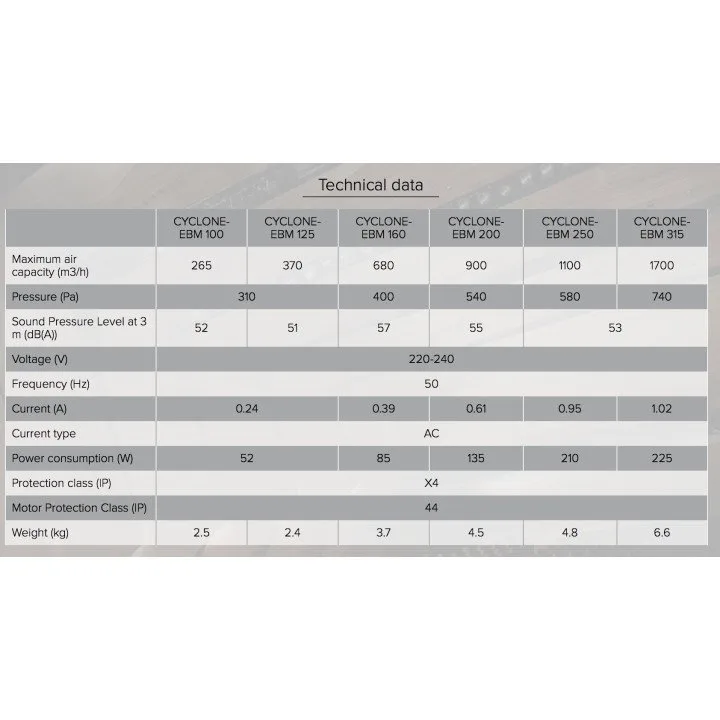

Details about products in catalog: here.

  • Diameter (mm)
    315
  • Airflow (m³/h)
    1500
  • Static pressure (Pa)
    700
  • Noise level (dB(A))
    53
  • Electrical power (W)
    225
  • Voltage / frequency / phases
    220-240 V / 50 Hz / 1F
  • Installation type
    in-line
  • Fan type
    centrifugal / radial
  • Control
    external speed controller (not included)
  • Number of speeds
    adjustable via external speed controller (not included)
  • Functions
    thermal fuse
  • Application area (m²)
    duct up to 20 m + room up to 160 m²
  • Warranty (months)
    24
  • Weight (kg)
    6,1
  • Motor
    ball bearings
  • Compatible with
    aRo 400
  • Brand
  • Reference
    CYCLONE-EBM 315
  • In stock
    2 Items
  • UPC
    15629
  • EAN13
    3831122006901
