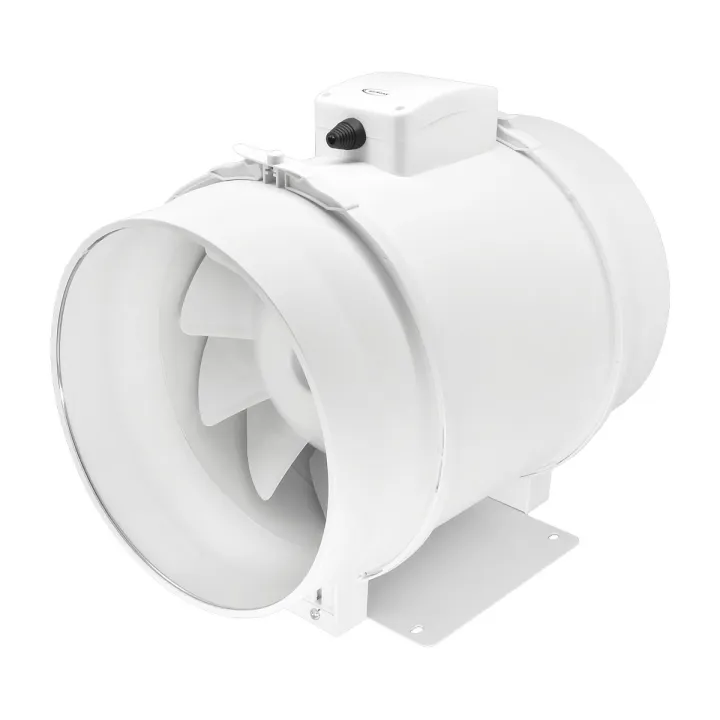

Duct fan Ø310 mm, 2 speeds
Duct fan Ø310 mm, 2 speeds

Inline duct fan Ø310 mm with two speeds, up to 2220 m³/h

airRoxy
€284.90
Tax included €284.90 incl. VAT€233.52 excl. VAT
  • Duct fan for round duct Ø310 mm.
  • Two speeds I / II with airflow 1680 / 2220 m³/h.
  • Speed selection with an external switch or speed controller.
  • For air supply and exhaust through ducts in indoor spaces.
At supplierDelivery in 3–⁠5 days

Supply and exhaust air through round ducts

The duct fan Ø310 mm is intended for installation in a round ventilation duct. It is used for supply and exhaust air through ducts and offers two speeds I / II, which you select with an external switch or an external speed controller.

Main advantages

  • Installation in Ø310 mm duct: it is suitable for round duct ventilation systems.
  • Two speeds I / II: airflow I / II is 1680 / 2220 m³/h.
  • Static pressure for duct use: static pressure I / II is 180 / 360 Pa.
  • External connection box: connection is made on the terminal strip in the box according to the wiring diagram.
  • Use in various rooms: it is suitable for bathrooms, apartments, houses, shops, hospitality venues, garages and warehouses.
  • 2-year warranty: the product has a 2-year warranty.

Use and installation

The fan is used for supply and exhaust air through ventilation ducts in bathrooms, apartments, houses, shops, hospitality venues, garages and warehouses. It is intended for installation in a round duct Ø310 mm.

Power supply 220-240 V, 50 Hz and speed selection are connected according to the wiring diagram on the terminal strip in the external connection box. Speed I / II is selected with an external switch or an external speed controller; the switch or controller is not included. The protection rating is IPX2, so the product is not for outdoor installation. During installation, also consider the weight of 10,5 kg.

Frequently asked questions

Is the switch or speed controller included?

No. Speed I / II is selected with an external switch or an external speed controller, but the switch or controller is not included.

What airflow does the fan provide?

The airflow at speed I / II is 1680 / 2220 m³/h.

Does the fan have a backdraft shutter?

No, the fan does not have a backdraft shutter.

Conclusion

The duct fan Ø310 mm is intended for ventilation through round ducts, where you need supply or exhaust air with speed selection I / II. It is suitable for the listed indoor spaces and comes with a 2-year warranty.

  • Diameter (mm)
    310
  • Airflow (m³/h)
    1680 / 2220
  • Static pressure (Pa)
    180 / 360
  • Noise level (dB(A))
    63 / 70
  • Electrical power (W)
    200 / 290
  • Voltage / frequency / phases
    220-240 V / 50 Hz / 1F
  • IP rating
    IPX2
  • Installation type
    in-line
  • Control
    external speed controller (not included)
  • Number of speeds
    2
  • Warranty (months)
    24
  • Weight (kg)
    10,5
  • Compatible with
    aRo 400
  • Motor speed (rpm)
    1650 / 2150
  • Brand
  • Reference
    aRil 310 PRO
  • In stock
    99999 Items
  • EAN13
    5903351810081
