Roof-mounted radial fan Ø150 for air extraction from a ventilation duct images
Roof-mounted radial fan Ø150 for air extraction from a ventilation duct
Price: €209.95
Tax included €209.95 incl. VAT€172.09 excl. VAT
- For air extraction from a ventilation duct
- Connection diameter Ø150
- Airflow 420 m³/h
- Single-phase power supply 220–240 V
Description
Air extraction from a ventilation duct on the roof
The roof fan is intended for mechanical air extraction from a ventilation duct. It is installed on top of the duct on the roof and extracts stale air from the building.
Main advantages
- Simple air extraction from a ventilation duct on the roof.
- Suitable for different buildings, such as residential, public, sports and business or retail premises.
- Single-phase motor with continuous operation and ball bearings.
- IPX4 protection and protection class II.

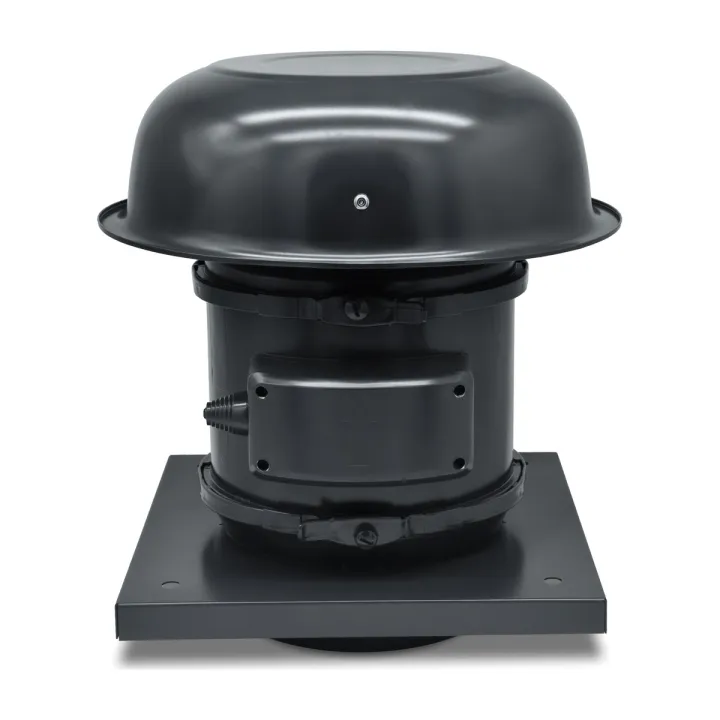

- Robust design with a cap and mounting base made of painted galvanized sheet steel.
- Low weight of 3.15 kg for easier handling during installation.
Operation and installation
The fan operates at one speed and has no built-in switch. It is switched on and off with an external switch in the electrical installation. According to the manufacturer’s instructions, an external speed controller (not included) can also be installed.

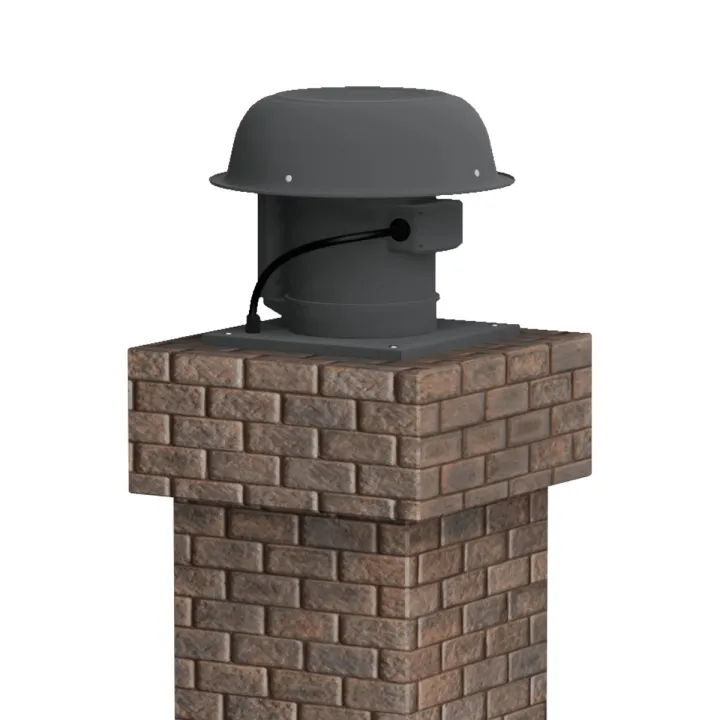

Installation is vertical, with the cap on top. The square mounting base with four fixing holes is firmly attached to the flat top of the ventilation duct or upstand on the roof, and the round connection spigot is inserted into the duct. The joint between the duct and the fan must be sealed to prevent water ingress. The electrical connection requires an additional cable for outdoor use, as the connection cable is not included. The installation must include an all-pole switch with a contact gap of at least 3 mm, and the connection should be carried out by a qualified electrician.
Technical properties
| Connection diameter | 150 mm |
|---|---|
| Airflow | 420 m³/h |
| Electrical power | 55 W |
| Current consumption | 0.19 A |
| Motor speed | 2250 rpm |
| Noise level | 63 dB(A) |
| Power supply | 220–240 V, 50 Hz, single-phase |
| Degree of protection | IPX4 |
| Protection class | II |
| Operating temperature | from −20 °C to +60 °C |
| Number of speeds | 1 |
| Motor and bearings | single-phase asynchronous induction motor, ball bearings |
| Materials | radial impeller and motor housing made of polymer materials; cap and mounting base made of painted galvanized sheet steel |

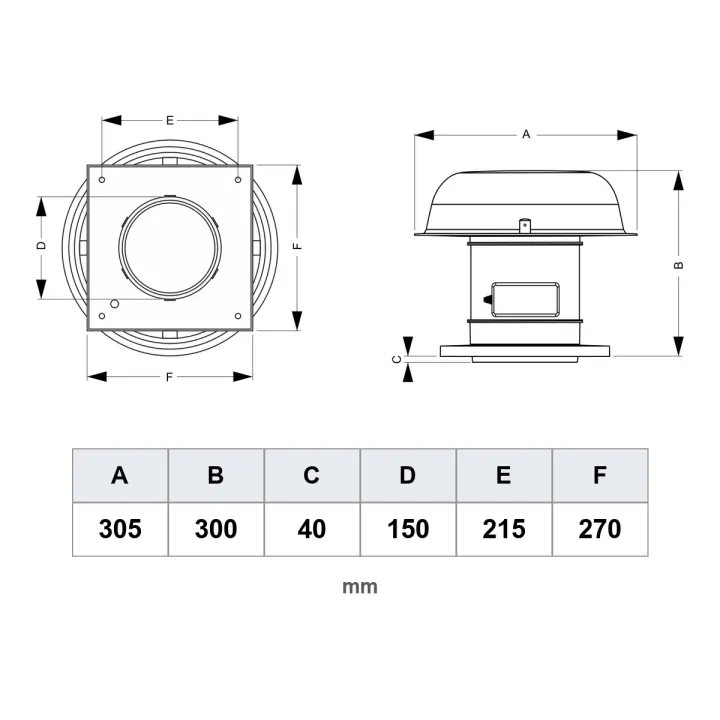

| Cap diameter | 305 mm |
| Overall height | 340 mm |
| Mounting base | square, 270 × 270 mm |
| Spacing of fixing holes | 215 mm |
| Weight | 3.15 kg |
| Compliance | CE |
| Warranty | 2 years |
Maintenance
The fan does not require frequent maintenance. The impeller can be removed and cleaned with a damp cloth, while the motor must not be wetted. The power supply must be switched off before cleaning. The motor must be inspected at least every two years.
Frequently asked questions
How is the fan switched on?
It is switched on and off with an external switch in the electrical installation.
Can an external speed controller be used?
Yes, according to the manufacturer’s instructions, an external speed controller (not included) can be installed.
Is the fan suitable for chimneys of combustion appliances?
No, the fan is not intended for chimneys of combustion appliances such as boilers, stoves or fireplaces.
Conclusion
The roof fan is intended for air extraction from a ventilation duct on the roof, with simple installation, reliable operation and technical properties for mechanical extract ventilation.
Product Details
- MaterialGalvanized steel
Plastic - Colordark grey
- Diameter (mm)150
- Airflow (m³/h)420
- Noise level (dB(A))63
- Electrical power (W)55
- Voltage / frequency / phases220-240 V / 50 Hz / 1F
- IP ratingIPX4
- Installation typeroof-mount
- Fan typecentrifugal / radial
rooftop - Controlswitch
- Number of speeds1
- Operating temperature range (°C)-20 - +60
- Standards / CertificationsCE
- Warranty (months)24
- Weight (kg)3,15
- Flow directionone-way (extract)
- Motorball bearings
- Dimensions H × W × D (mm)340 × 305 × 305
- Brand
- ReferenceaRoof 150
- In stock99999 Items
- EAN135901583202063
